GreaseShield

Automatic Grease Separation and Solids Removal

The GreaseShield is the first proactive greasetrap to deal with emulsified and saturated animal fats and FOGs, before they solidify.

GreaseShield removes entrained solids to reduce BOD, COD and SS loadings reducing loading on waste water treatment plants and pumping stations.

GreaseShield harvests a source of renewable energy.

No heating elements; Low operating cost; Sustainable Award Winning Technology!

GreaseShield protects the drainage system and reduces the loading on waste water treatment plants and pumping stations.

The recurring need to pump greasetraps and refill with clean water is eliminated.

No biological agents, enzymes and chemicals are required. User Friendly, Odour Free!

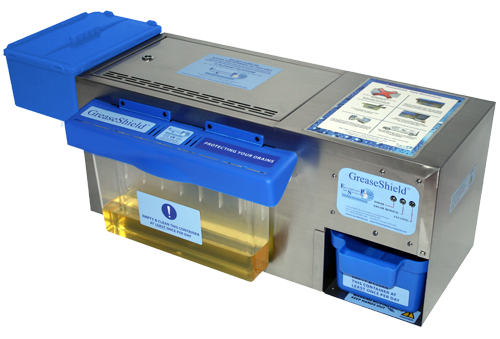

GreaseShield Pre Filter
"The Best Grease Trap in the World"

AWARD WINNING TECHNOLOGY

  • 2012 Gulfood Highly Commended ‘Best New Catering Equipment Innovation’
  • 2012 Gulfood Highly Commended ‘Best Environmental Sustainability Initiative’
  • 2011 FCSI Highly Commended Sustainable Catering Equipment Award
  • 2010 Green Hospitality Award for Innovation
  • 2010 Innovation in Industry Award
  • 2009 Eco Innovation Award
  • 2009 Best Equipment Product
  • 2008 Best Catering Equipment Award
x
x

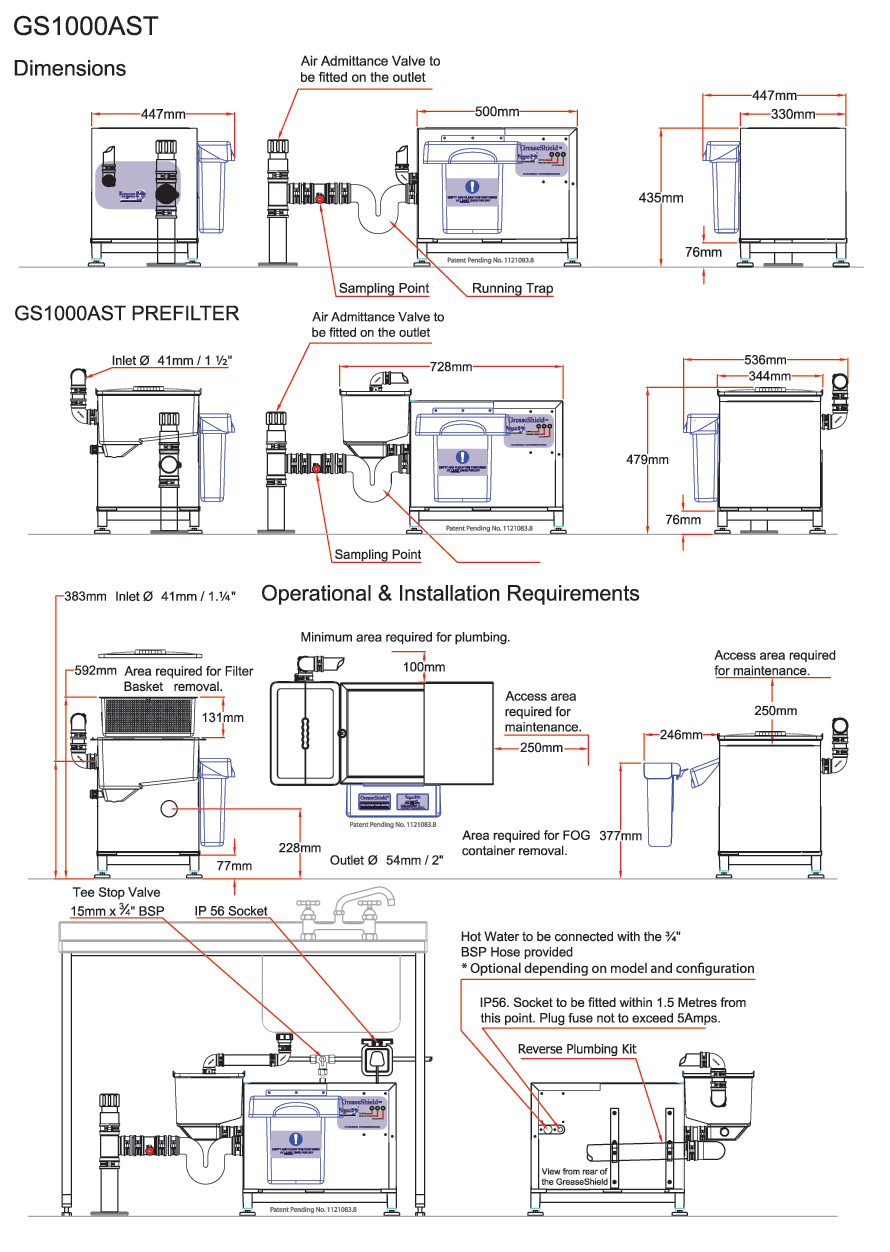

Catering Equipment Suppliers Association British Water Restaurant Association of Ireland European FOG Association Ltd Catering Equipment Distributors Association The British Hospitality Association GS1000AST Dimensions Air Admittance Valve to be fitted on the outlet Sampling Point Running Trap GS1000AST PREFILTER Inlet Air Admittance Valve to be fitted on the outlet Sampling Point Inlet Operational and Installation Requirements Minimum area required for plumbing Area required for Filter Basket removal Access area required for maintenance Access area required for maintenance Outlet Area required for FOG container removal Tee Stop Valve IP56 Socket Hot Water to be connected with the BSP Hose provided *Optional depending on model and configuration IP56 Socket to be fitted within 1.5 Metres from this point. Plug fuse not to exceed 5 Amps. View from rear of the GreaseShield Reverse Plumbing Kit
